DCGT070204 Aluminum Inserts , Carbide Turning Inserts With High Machined Surface

Brand Name : MMM

Model Number : DCGT070204

Certification : ISO 9001

Place of Origin : CHINA

MOQ : 1 KG

Price : USD

Payment Terms : L/C, T/T

Supply Ability : 10,000 PCS/Month

Delivery Time : 5-15 Days

Packaging Details : Internal Plastic Box Packaging

Application : Aluminum Turning

Material : Cemented Carbide

Grade : Various

Type : Various

Coating : Uncoated

Workpiece : Aluminum,Non-ferrous Metal,copper

Color : Uncoated for Aluminum

Package : 10pcs/plastic Box

Keywords : Cemented Carbide CNC Inserts,Aluminum alloy insert

Stock : carbide inserts with stock available

Contact Now

DCGT070204 Aluminum Turning Inserts with High Quality Machined Surface

Application:

ISO N material, the first choice for non-ferrous metal processing such as aluminum alloy.

Feature Advantage:

Chipbreaker AL:
- Class G precision, precision grinding of five-axis grinding machines.
- The large rake angle and the back corner make the blade edge sharper.
- Ensure effective chip breaking and make the cutting more brisk.
- Surface finish to effectively prevent built-up edge, high quality machined surface and long tool life.
Grade MN10:

Grade

Coating

Performance

Equivalent Grade

MN10

Uncoating

Ultrafine grained carbide, uncoated grade.
Excellent wear resistance, high strength and resistance to thermal deformation.
Suitable for processing materials such as non-ferrous metals and superalloys.
Better versatility and economy.

H10
HTi10
H01

Types:
- ISO standard turning inserts are available in a variety of conventional types
- Different insert arcs of various specifications (R0.2, R0.4, R0.8, R1.2, etc.)

Serial	Type	MN10
C	CCGX09T3 * -AL	★
C	CCGX1204 * -AL	★
D	DCGX11T3 * -AL	★
S	SCGX09T * -AL	★
S	SCGX1204 * -AL	★
T	TCGX16T3 * -AL	★
T	TCGX2204 * -AL	★
V	VBGX1604 * -AL	★
V	VCGX1604 * -AL	★

Recommended Cutting Parameters:

The following cutting parameters are the recommended range values. Appropriate adjustments and selections should be considered after considering the following factors:

Specific physical properties of the material being processed.The actual condition of the part blankPower and rigidity of the machine tool.Clamping rigidity of tools and workpieces.Balance between tool life and machining efficiency.

				MN10
				Feed (mm/rev)
				0.05 - 0.35
ISO	Material	Heat Treatment	Hardness (HB)	Speed (m/min)
N	Aluminum Alloy	Un-Heat Treatment	60	1750 - 800
N	Aluminum Alloy	Heat Treatment	100	510 - 250
N	Cast Aluminum Alloy	Un-Heat Treatment	75	460 - 175
N	Cast Aluminum Alloy	Heat Treatment	90	300 - 110
N	Copper Alloy	Lead Alloy	110	610 - 205
N	Copper Alloy	Copper	90	310 -195
N	Copper Alloy	Copper, Lead-free Copper, Electrolytic Copper	100	225 - 115

DCGT070204 Aluminum Inserts , Carbide Turning Inserts With High Machined Surface

Product Tags:

cemented carbide inserts

carbide turning inserts

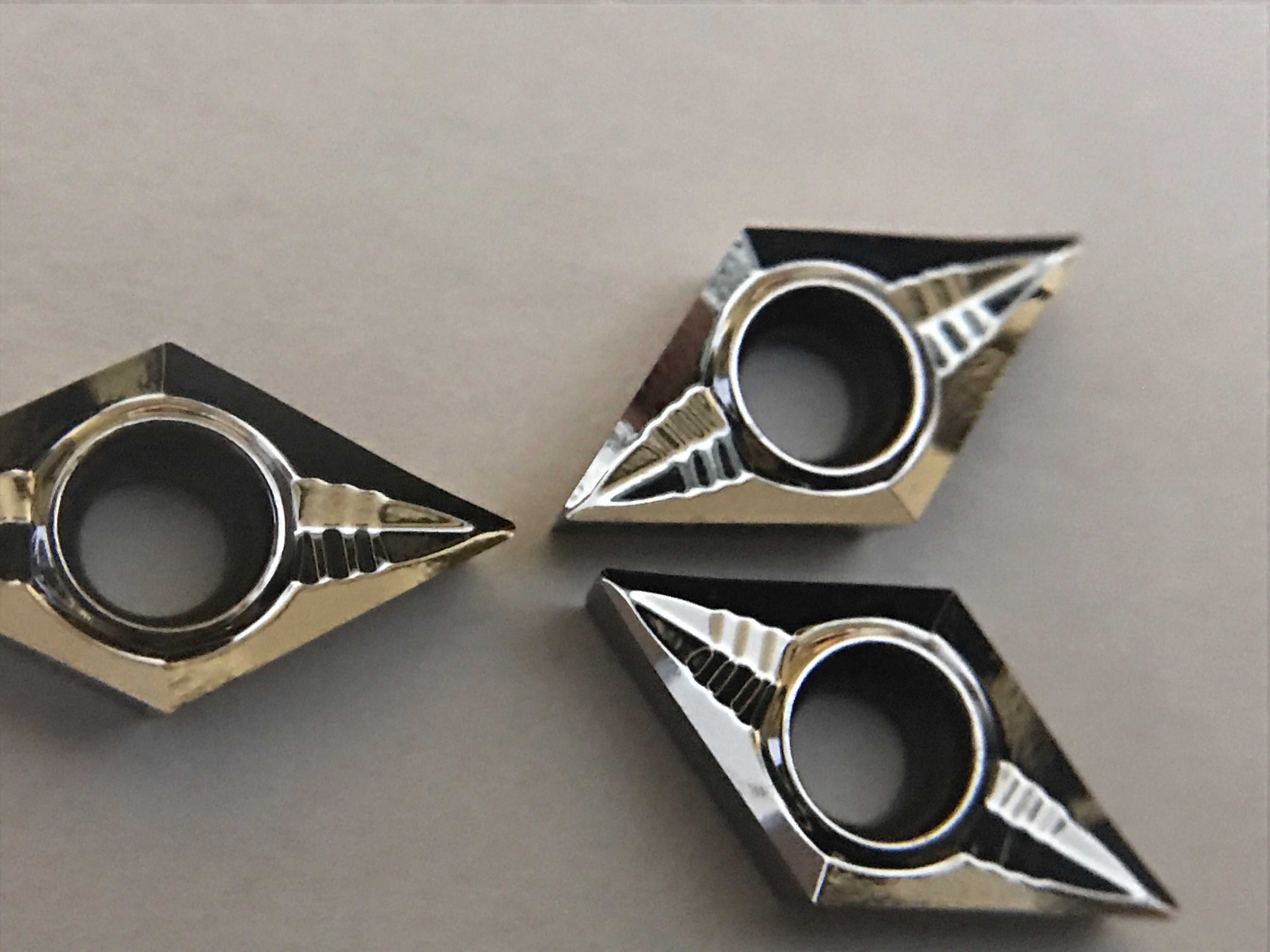

DCGT070204 Aluminum Inserts , Carbide Turning Inserts With High Machined Surface Images
